Volvo PL4608 Pipelayer Service Manual - PDF Download

Maintain your machine's legendary stability and lifting power with the official Volvo PL4608 Pipelayer Workshop Service Repair Manual. This technical volume is the primary authority for operators and technicians, providing the factory-validated procedures and troubleshooting steps required to maintain this high-capacity, excavator-based pipelayer to original OEM standards.

The PL4608 is engineered for extreme duty, featuring an 80-ton tipping capacity and the unique ability to work across 360 degrees of swing. This manual offers a deep dive into the Load Management System (LMS) and the high-torque Volvo powertrain. Whether you are servicing the heavy-duty winches, performing a boom conversion, or calibrating load sensors, these high-resolution diagrams ensure every repair is executed with professional accuracy.

Technical Service Highlights

• Heavy Lift Hydraulics: Exhaustive schematics for the high-pressure winch motors, boom cylinders, and optional digging kit flow settings.

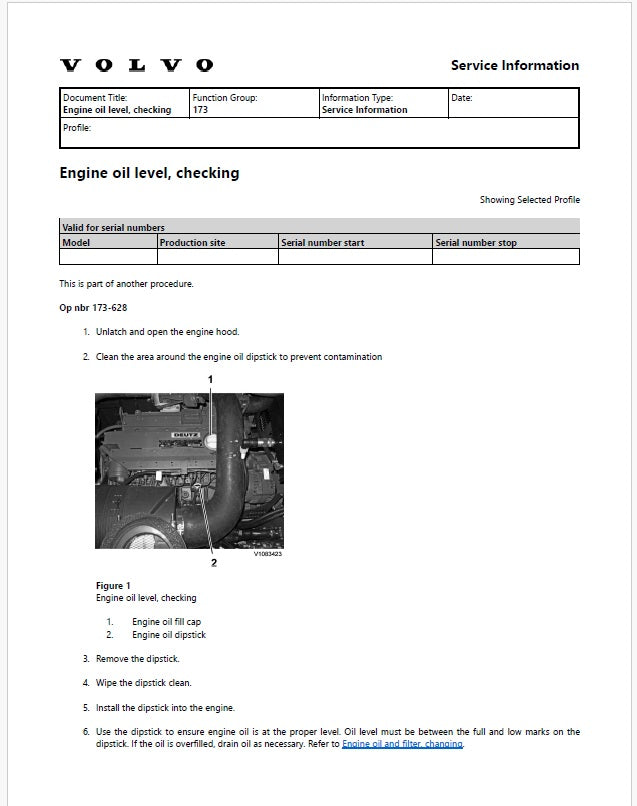

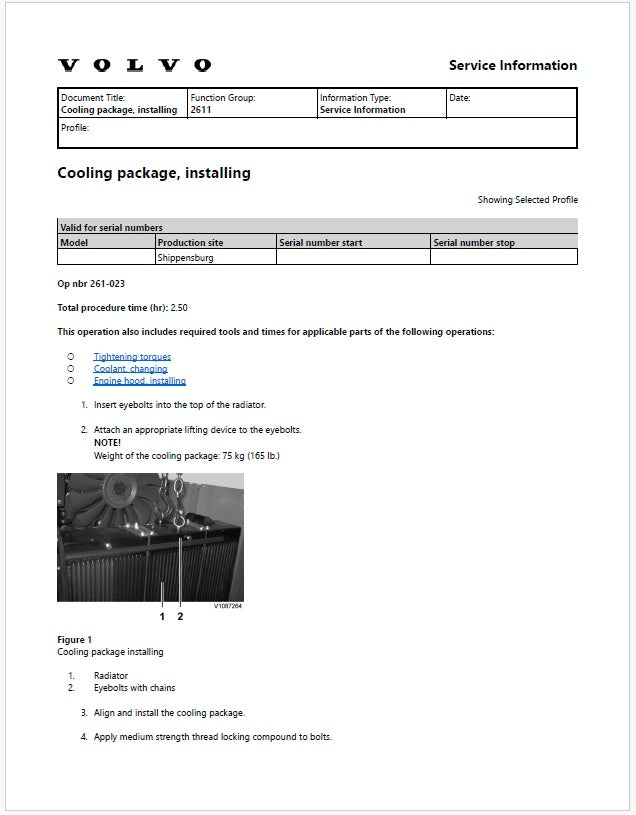

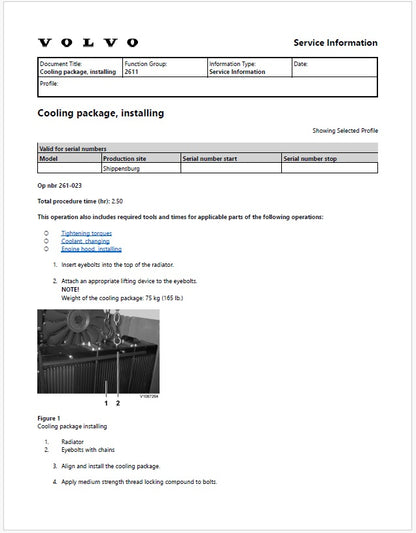

• Engine & Drivetrain: Comprehensive data for the Volvo engine, including fuel injection calibration, cooling package service, and the mechanical slew lock system.
• Safety & LMS Systems: Detailed calibration procedures for the Load Management System, wireless sensors, and anti two-block safety devices.
• Workshop Ready: Searchable and bookmarked PDF format designed for instant access on smartphones, tablets, or shop laptops directly at the job site.

By utilizing this official workshop resource, you can eliminate the high costs of dealership service visits and minimize critical project downtime through precise, in-house diagnostics and repair.
