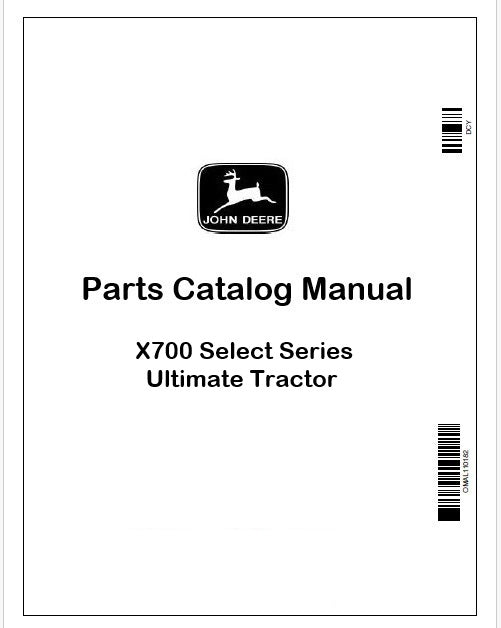

John Deere X700 Select Series Ultimate Tractor Parts Catalog Manual PDF PC9505

John Deere X700 Parts Catalog | PC9505

The official PC9505 parts catalog is the most accurate resource for locating exact factory part numbers for the John Deere X700. This digital OEM manual utilizes high-resolution exploded diagrams to showcase the assembly of every system, from the engine block to the smallest frame components.

Fast Part Identification

This manual covers all critical systems for the X700 Select Series Ultimate:

• Engine & Fuel: Detailed views of internal components, fuel delivery lines, and filtration.

• Drive & Hydraulics: Full schematics for transmission gears, hydraulic pumps, and control valves.

• Steering & Brakes: Precise diagrams for steering linkages, front axles, and braking hardware.

• Electrical & Body: Complete wiring harnesses, sensors, switches, and exterior panels.

Format & Benefits

The searchable PDF format is compatible with all devices, allowing you to pull up part numbers on your smartphone directly while working on the tractor. You can print specific schematics for the shop or use the digital bookmarks to skip instantly to the section you need.

By using the official PC9505, you ensure that every replacement part matches original factory specifications. This eliminates ordering errors and helps reduce machine downtime, making it a vital tool for owners and technicians managing their own repairs and maintenance.
