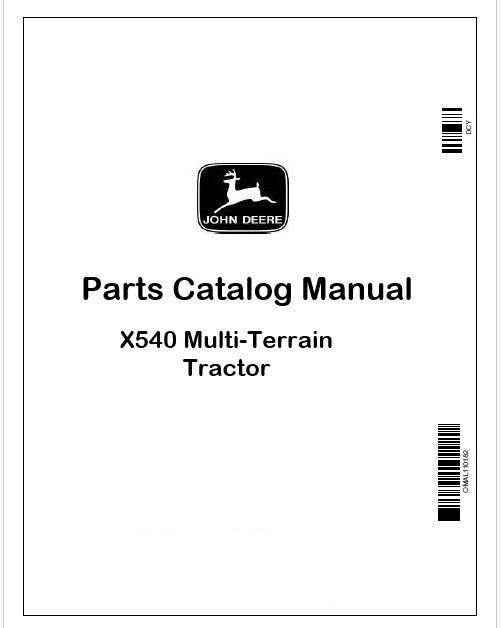

John Deere X540 Multi-Terrain Tractor Parts Catalog Manual PDF PC9527

Maintaining the John Deere X540 Multi-Terrain Tractor requires precision, especially given its liquid-cooled engine and complex hydraulic systems. The PC9527 Parts Catalog is the official factory document designed to help you pinpoint every component with high-resolution exploded views.

John Deere X540 Parts Catalog (PC9527)

This manual is more than just a list of numbers; it is a visual breakdown of the tractor's assembly, ensuring you order the exact OEM parts required for the X540's specific multi-terrain configuration.

• Engine & Cooling (MM13809, MM15852): Covers the radiator, water pump, and internal engine components specific to the liquid-cooled V-twin.

• Fuel & Air: Detailed diagrams for the fuel tank, lines, and air filtration system.

• Power Train: Comprehensive parts lists for the K72 transaxle, drive belts, and pulleys.

• Steering & Brakes: Breakdown of power steering cylinders, linkages, and braking hardware.

• Electrical: Complete wiring harnesses, ignition switches, and sensor locations.

• Chassis & Body: Detailed views of the frame, fender deck, and attachment mounting points.

Format and Accessibility

• Instant Access: Searchable PDF download compatible with PC, Mac, tablets, and smartphones.

• Printable: Allows you to print specific assembly diagrams to take into the garage, keeping your digital device clean.

• Searchable: Navigate via clickable bookmarks or search terms to find part numbers in seconds.

Using the official PC9527 catalog ensures you maintain the performance and reliability of your X540 by avoiding the errors often associated with aftermarket "universal" parts lists.
