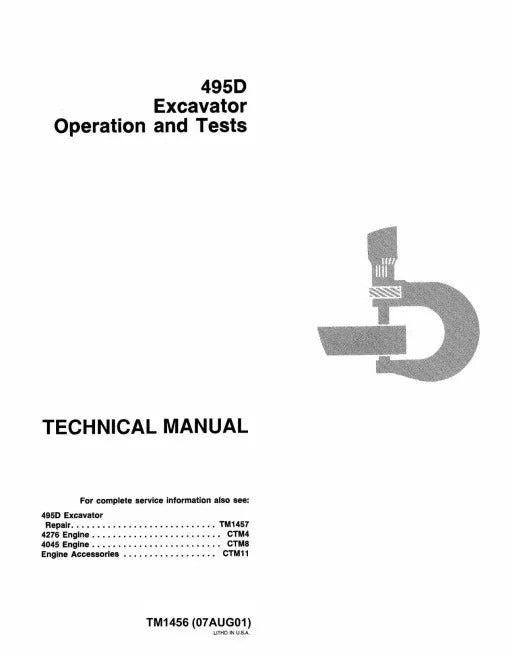

John Deere 495D Wheeled Excavators Operation and Test Manual (TM1456)

John Deere 495D Wheeled Excavator Operation and Test Manual PDF

This factory Operation and Test Manual provides detailed operating theory, system descriptions, and diagnostic testing procedures for the John Deere 495D Wheeled Excavator. It is intended for professional technicians and service personnel responsible for machine setup, inspection, troubleshooting, and performance verification.

Organized by system and function, the manual explains how hydraulic, electrical, and electronic systems operate and how to accurately test them using approved procedures. Clear specifications, test values, and schematic diagrams support efficient fault isolation and reliable machine evaluation.

Models Covered:

John Deere 495D Wheeled Excavator

Manual Coverage Includes:

• General Safety Information and Operating Precautions
• Machine Identification and Technical Specifications
• Component Locations and System Layouts
• Engine Operating Principles and Performance Checks
• Fuel, Air Intake, and Cooling System Testing
• Hydraulic System Operation and Functional Tests
• Main Pump, Control Valve, and Auxiliary Circuit Testing
• Travel Drive, Axles, Steering, and Swing System Tests
• Brake System and Ride Control Diagnostics
• Electrical System Operation and Circuit Testing
• Electronic Control Units and Sensor Diagnostics
• Wiring Diagrams and Electrical Schematics
• Pressure, Flow, and Temperature Test Procedures
• Diagnostic Codes and Troubleshooting Charts
• Calibration, Adjustment, and Final Performance Checks

Format and Access Features:

• Instant PDF Download
• Language: English
• Fully Searchable and Bookmarked
• High-Resolution Diagrams and Illustrations
• Printable Pages for Workshop or Field Diagnostics
• Compatible with Windows, macOS, Tablets, and Smartphones

Why This Operation and Test Manual Is Essential:

• Explains complete system operation and control logic
• Supports accurate diagnostics and performance testing
• Reduces troubleshooting time and unnecessary repairs
• Helps verify repairs and system adjustments
• Essential reference for professional service technicians

The John Deere 495D Wheeled Excavator Operation and Test Manual PDF (TM1456) is a critical factory resource for diagnosing system issues, validating repairs, and ensuring dependable machine operation.

Frequently Asked Questions (FAQ)

Q: Does this manual include repair instructions?

A: No, this manual focuses on operation, testing, and diagnostics. Repair procedures are covered in a separate repair manual.

Q: Are hydraulic and electrical test procedures included?

A: Yes, detailed hydraulic and electrical testing procedures are provided.

Q: Is this manual suitable for professional technicians?

A: Yes, it is written for trained technicians and service personnel.

Q: Can the PDF be used offline?

A: Yes, once downloaded, the manual can be accessed without an internet connection.
