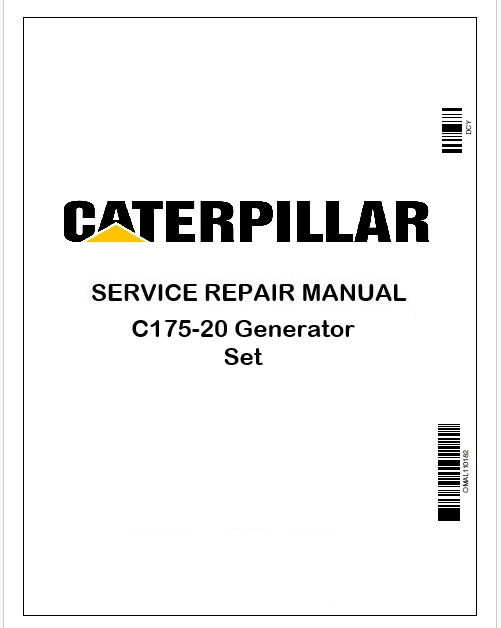

Caterpillar C175-20 Generator Set Repair Service Manual Pdf

Official Repair Service Manual | Instant PDF Download

Ensure the peak operational efficiency and mission-critical reliability of your ultra-high-output power infrastructure with the Caterpillar C175-20 Generator Set Repair Service Manual. This comprehensive technical guide is specifically engineered for the BXR and TZ8 serial number prefixes. Whether you are conducting a precision overhaul on the massive 20-cylinder power plant, troubleshooting the advanced Electronic Common Rail Fuel System, or calibrating the EMCP 4.4 control logic for large-scale grid synchronization, this manual provides the factory-authorized procedures required to maintain your equipment to OEM standards.

This is a professional-grade Service Manual designed for generator technicians, power systems engineers, and facility maintenance managers. It delivers deep-dive technical instructions, including complete electrical circuit diagnostics, ADEM™ A4 electronic governor calibration, and detailed disassembly/assembly for both the engine and the high-output SR5 alternator. By utilizing these factory-standard instructions, you can ensure your C175-20 continues to deliver industry-leading output (reaching up to 3900–4000 kVA / 3100–3200 ekW) for mission-critical data centers, hospitals, and utility power plants.

Manual Specifications

Machine Model	Caterpillar C175-20 Generator Set
Manual Type	Repair Service Manual
Configuration	V-20, 4-Stroke-Cycle Water-Cooled Diesel
Serial Coverage	Prefixes BXR, TZ8 (Full Range)
Page Count	1200+ Pages
File Size	58 MB
File Format	PDF (Searchable, Printable, Bookmarked)
Compatibility	Windows, macOS, iOS, Android, Linux

What Is Included?

This repair manual is logically organized into technical groups, providing high-resolution schematics, step-by-step disassembly/assembly instructions, and the "Testing and Adjusting" data needed for precise machine performance.

Service Group	Repair & Diagnostic Coverage
Engine Systems	V-20 Component Overhaul, Cylinder Head Repair, Quad-Turbocharger Service, Cooling System Maintenance
Alternator & Generation	SR5 Alternator Service, Winding Resistance Testing, Integrated Voltage Regulator (IVR) Calibration
Control & Paralleling	EMCP 4.2B / 4.4 Series Diagnostics, Multi-unit Load Sharing, ADEM™ A4 ECM Troubleshooting
Fuel System	Electronic Common Rail Service, High-Pressure Pump Diagnostics, Injector Calibration & Timing
Electrical & Schematics	Complete AC/DC Wiring Diagrams, J1939 Data Link Circuits, Safety Shutdown Troubleshooting
Troubleshooting	Operational Testing, Fault Code (DTC) Analysis, 100% Block Load Performance Diagnostics

About the Caterpillar C175-20 Generator Set (BXR, TZ8)

The Caterpillar C175-20 represents the pinnacle of large-scale power generation, engineered specifically for high-speed, high-density performance in the world's most demanding mission-critical facilities. Featuring a 20-cylinder engine with ACERT™ Technology, the BXR and TZ8 series provide unparalleled power in a single package. A hallmark of the C175-20 is its Electronic Common Rail fuel system, which delivers multiple high-pressure injections per cycle with micro-second precision. This technology ensures optimal combustion and exceptional transient response—meeting ISO 8528-5 G3 requirements—while maintaining superior fuel efficiency and lower emissions across the entire load range.

Equipped with the ADEM™ A4 electronic control module, the C175-20 offers the industry’s most advanced engine management, allowing for seamless integration with complex facility management and paralleling systems. The integrated SR5 alternator is designed specifically for this ultra-high output, featuring robust Class H insulation and superior motor-starting characteristics to handle massive industrial inductive loads. Built for longevity and ease of service despite its scale, the C175-20 is the global choice for standby power. This manual ensures that every maintenance task is performed with the accuracy required to guarantee the readiness of your primary or emergency power infrastructure.
