Case IH Sb551 Small Square Baler Parts Catalog Manual Instant PDF

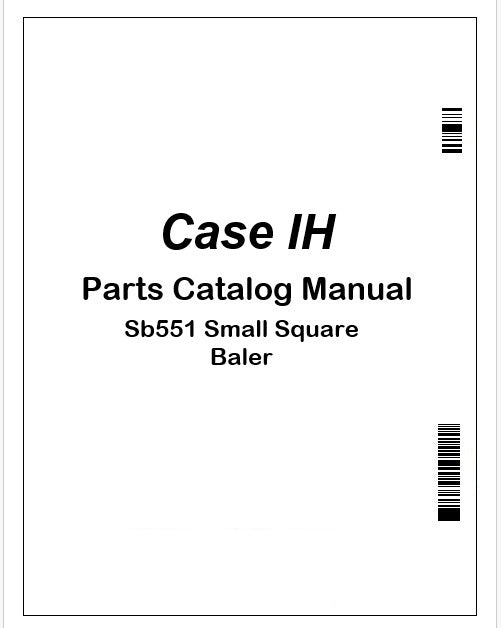

Ensure your hay production remains uninterrupted with the official Case IH SB551 Small Square Baler Parts Catalog. This manual is the definitive technical resource for the SB551, providing the precise OEM part numbers and high-resolution exploded diagrams required to maintain its high-capacity baling performance. From the intricate knotter system to the heavy-duty plunger, this guide allows you to identify every component with factory-level accuracy.

Core System Breakdowns

• Pickup & Feeding: Detailed schematics for the pickup tines, cam tracks, and the heavy-duty feeder finger drive.

• Knotter & Needle Assembly: Precise mapping of the knotter gears, bill hooks, needles, and timing components.

• Plunger & Bale Chamber: Visual identification for plunger rails, knives, and the bale tensioning system.

• Driveline & Gearbox: Comprehensive breakdowns of the main gearbox, flywheels, and PTO shafts.

• Chassis & Hydraulics: Full listings for the frame, hitch, wheel hubs, and hydraulic cylinders.

Digital Workshop Features

• Instant Searchability: Use the ""Ctrl+F"" function to find specific OEM numbers or part names in seconds.

• Mobile Accessibility: View the entire catalog on your smartphone or tablet directly in the field or at the parts counter.

• 400% Zoom Clarity: High-resolution diagrams ensure you can see even the smallest shims, bearings, and fasteners.

• Print-Ready Sections: Print only the pages you need for your current repair to keep the original digital file clean and oil-free.

Using the correct engineering data from this SB551 reference eliminates ordering errors and ensures a factory-perfect fit for all replacements. Secure this digital catalog to maintain your equipment to professional Case IH standards.
