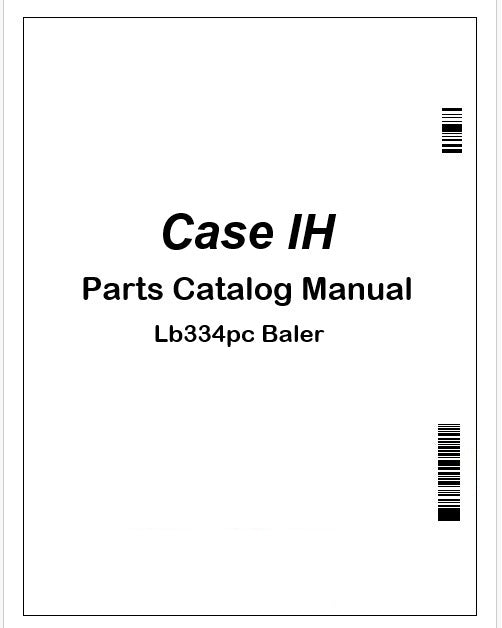

Case IH Lb334pc Baler Parts Catalog Manual Instant PDF

When a specialized packer-cutter system like the LB334PC encounters a mechanical failure, having the factory assembly breakdown on hand is the difference between a quick fix and a lost afternoon. This digital parts catalog provides the verified OEM part numbers and detailed exploded views necessary to identify and source components for your big rectangular baler’s specific configuration.

This manual offers an organized look at the PC-specific assemblies and core baler systems:

• Packer-Cutter Intake: Detailed schematics for the packer tines, cutter knives, and the heavy-duty rotor drive.

• Bale Chamber & Plunger: Hardware for the density control system, plunger rollers, and crop holding fingers.

• Knotter Assemblies: Clear breakdowns of the double-knotter components, including needles, billhooks, and the cleaning fan.

• Driveline & Gearboxes: Parts for the main slip clutch, flywheel, and the primary power distribution gearboxes.

• Hydraulics & Controls: Full routing for the manifold blocks, density cylinders, and electronic sensors.

The searchable PDF format allows you to pinpoint a specific washer or bearing while standing right at the machine. You can zoom in on complex needle timings on your smartphone or print out hard copies for the workshop to keep your devices grease-free. Your download link is delivered immediately after a secure checkout, putting the technical data you need in your pocket so you can get the LB334PC back to work.
