Case IH 9190 Steiger 4wd Tractor Parts Manual PDF

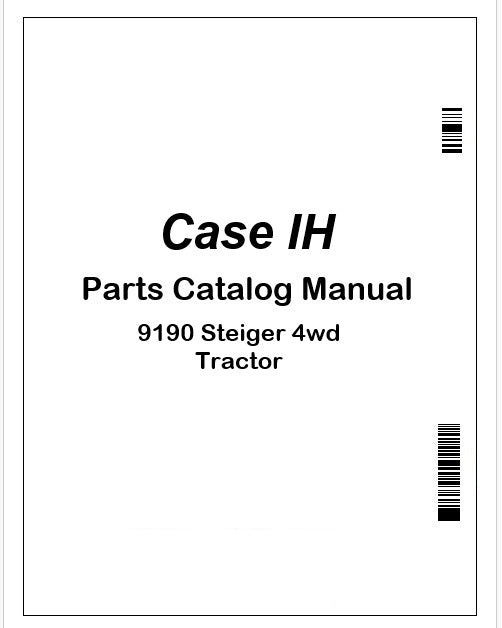

Case IH 9190 Steiger 4wd Tractor Parts Manual

Keeping a massive 4WD workhorse like the Case IH 9190 Steiger in the field requires exact technical data. This official parts catalog is the ultimate visual guide for identifying every component across your tractor’s major systems. By providing factory-authorized exploded views and precise OEM part numbers, it removes the guesswork from maintenance and helps you source the correct hardware for every repair.

The manual covers all critical areas, including the high-capacity hydraulic circuits, engine cooling, and the rugged drivetrain unique to the 9190 series. Whether you are addressing a steering cylinder issue or replacing cab electrical sensors, the clear diagrams show the exact assembly sequence. Having this technical volume on your device allows you to identify a broken seal or a specific mounting bolt right in the field, minimizing downtime during critical seasons.

Key Catalog Resources:

• Engine & Fuel: Full breakdown of external engine parts, filtration, and fuel delivery.

• Hydraulics & Steering: Detailed schematics for pumps, valves, and articulation joints.

• Drivetrain & Brakes: Exploded views of the axles, transmission, and braking components.

• Electrical & Chassis: Wiring harnesses, lighting, and main frame hardware.

This digital download is ready for immediate use on your smartphone, tablet, or laptop. You can zoom in on small hardware details or print out specific pages to take directly to the shop. With a searchable index and clear bookmarks, finding a specific washer or manifold bolt takes only a moment.
