Bobcat VR638 Telehandler Versa Handler Parts Catalog Manual Instant PDF
Bobcat VR638 Telehandler Versa Handler Parts Catalog Manual Instant PDF
⭐⭐⭐⭐⭐ 50+ Reviews
Couldn't load pickup availability
Official Parts Catalog Manual | Instant PDF Download

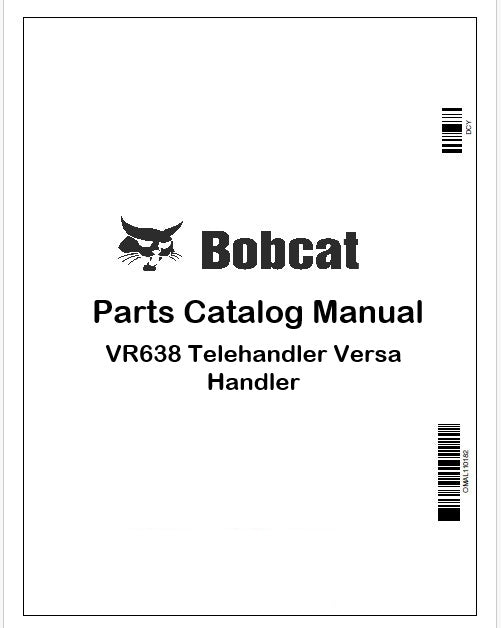

Maximize the mechanical uptime and operational reliability of your equipment with the Bobcat VR638 Telehandler VersaHandler Parts Catalog Manual. This professional-grade technical volume is the definitive visual authority for identifying every individual component within Bobcat’s high-performance telescopic handler platform. This manual provides the factory-authorized exploded views and precise part numbering required to maintain your machine to original OEM standards across the following production series: Comprehensive Serial Number Coverage:
365011001 - 365011999, 365111001 - 365111999, 366411001 - 366411999
365012001 & Above, 365112001 & Above, 366412001 & Above
This digital workshop resource is an essential tool for parts specialists, service technicians, and owner-operators managing the maintenance of the heavy-duty hydrostatic drivetrain and the reinforced multi-stage telescopic boom unique to the VR638 series. By utilizing these factory-validated diagrams, you can eliminate the risk of ordering incorrect hardware and ensure that every repair utilizes components engineered for your machine's specific load-sensing hydraulic demands and heavy-lift capacities. From specialized boom wear pads to high-pressure cylinder seal kits, this manual is your primary tool for professional parts management.
Manual Specifications
| Machine Model | Bobcat VR638 VersaHandler Telehandler |
| Document Type | Official Parts Catalog (Illustrated) |
| Technical Depth | Exploded Assemblies, OEM Part Numbers, & Hardware Quantities |
| Page Count | 331+ Pages |
| File Size | 58 MB |
| File Format | Searchable, Printable, & Bookmarked PDF |
| Compatibility | Universal (Desktop, Tablet, Mobile) |
Comprehensive Parts Modules
Quickly navigate the lifting and propulsion systems of your VR638 with a logically organized parts hierarchy:
| System Group | Visual Parts Coverage |
|---|---|
| Engine & Cooling | Full Engine External Parts, High-Capacity Cooling Package, and Fuel Filtration |
| Hydraulic System | Variable Displacement Pump, Main Control Valve, and Lift/Tilt/Telescopic Cylinders |
| Boom & Work Group | Telescopic Boom Weldments, Extension Hardware, Wear Pad Kits, and Carrier Pins |
| Drivetrain & Axles | Front/Rear Drive Axles, Differential Assemblies, Planetary Hubs, and Drive Shafts |
| Frame & Cab | Chassis Structure, ROPS/FOPS Cabin Glass, Operator Controls, and Sheet Metal |
| Electrical System | Main Chassis Harness, Dash Instrumentation, Joystick Controls, and Safety Sensors |
Precision Identification: The Bobcat VR638 System
The Bobcat VR638 VersaHandler is a powerhouse material handling solution engineered for high productivity on construction sites, industrial facilities, and agricultural operations. Featuring a heavy-duty chassis and a precision-engineered telescopic boom, this machine provides the reach and capacity needed for the most demanding placement tasks. This machine utilizes a refined hydrostatic drive circuit and an advanced three-mode steering system (front-wheel, all-wheel, and crab) to provide superior maneuverability in tight quarters. To maintain the machine's signature lifting stability and performance ratings, utilizing exact OEM-matched parts is vital.
This parts manual captures the specific engineering nuances across the serial sequences listed—ensuring that every component, from the hardened boom pivot pins to the precision-machined attachment carrier, is indexed for immediate retrieval. By following the detailed exploded views, you can visualize the correct assembly order, reducing the risk of installation errors and extending the operational life of your VersaHandler.
The Manualsshop Advantage
- Instant Readiness: Download your technical catalog immediately after purchase—no waiting for physical shipping.
- Superior Clarity: High-resolution vector illustrations that allow for extreme zooming on small hydraulic fittings and electrical pins.
- Total Scannability: Fully bookmarked and text-searchable PDF format to find part names or numbers in seconds.
- Bobcat Experts: View our complete Bobcat collection for all your loader and handler needs.
Frequently Asked Questions
Q: Does this cover the internal parts for the drive axles?
A: Yes. This manual includes a complete visual breakdown of the front and rear drive axles, including planetary gears, differentials, and brake components.
Q: Are the different wear pads for the telescopic boom sections listed?
A: Absolutely. It features detailed exploded views of the boom assembly, including all upper and lower wear pads required for smooth boom extension.
Q: Can I use this manual on my smartphone in the field?
A: Yes. The PDF format is universal and can be viewed on any device with a standard PDF reader, making it ideal for checking part numbers right at the machine.
