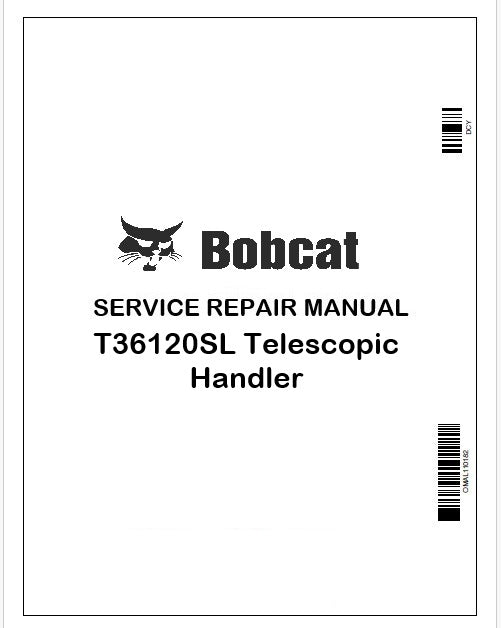

Bobcat T36120SL Telescopic Handler Repair Service Manual Instant PDF
Bobcat T36120SL Telescopic Handler Repair Service Manual Instant PDF
⭐⭐⭐⭐⭐ 50+ Reviews
Couldn't load pickup availability
Official Service & Repair Manual | Instant PDF Download
Ensure the maximum uptime and operational safety of your high-reach equipment with the Bobcat T36120SL Telescopic Handler Service Manual. This professional-grade technical volume provides the factory-authorized procedures required to perform everything from routine maintenance to complex system overhauls. This manual is specifically calibrated for the "SL" (Stabilizer & Leveling) platform within the T36120 series for the specified B3GS serial number range.
This digital workshop resource is an essential tool for service technicians and owner-operators managing the maintenance of the front-mounted stabilizers and the sophisticated hydrostatic drive systems unique to the Bobcat T36120SL. By following these factory-validated protocols, you can ensure that every repair—from recalibrating the load-sensing hydraulic valves to servicing the multi-stage telescopic boom—meets Bobcat’s rigorous engineering standards. This manual eliminates guesswork, providing the exact torque specs, fluid capacities, and troubleshooting logic needed to keep your machine stable and productive on any job site.
Manual Specifications & Serial Coverage
| Machine Model | T36120SL (Stabilizer & Leveling) Telescopic Handler |
| Serial Number Range | S/N B3GS11001 - B3GS13999 |
| Document Type | Official Service & Repair Manual |
| Page Count | 324+ Pages |
| File Size | 58 MB |
| File Format | Searchable, Printable, & Bookmarked PDF |
| Compatibility | Universal (Desktop, Tablet, Mobile) |
Comprehensive Service Modules
Navigate the complex systems of your Telescopic Handler with specialized chapters dedicated to every major mechanical group:
| Service Section | Technical Coverage |
|---|---|
| Stabilizer System | Deployment Cylinder Service, Safety Lock Valve Inspection, and Switch Calibration |
| Hydraulic System | Load Sensing Pump Testing, Main Control Valve Repair, and Boom Cylinder Overhaul |
| Hydrostatic System | Transmission Calibration, Drive Motor Service, and Inching Pedal Adjustment |
| Telescopic Boom | Extension/Retraction Chain Adjustment, Wear Pad Replacement, and Alignment |
| Axles & Steering | Three-Mode Steering Calibration, Axle Seal Replacement, and Brake System Service |
| Electrical System | Wiring Schematics, Load Moment Indicator (LMI) Calibration, and Fault Codes |
Precision Engineering: The Bobcat T36120SL
The Bobcat T36120SL is a high-performance telescopic handler engineered for superior lift height and placement accuracy. The "SL" designation highlights its dual stabilizer and frame leveling systems, which provide an expanded lifting envelope and increased stability on uneven ground. Featuring a high-tensile steel boom and an intuitive hydrostatic drive system, this machine provides the precision required for heavy placement at significant heights. To maintain the machine's signature lifting capacity and structural integrity, following the factory-prescribed service intervals for stabilizer safety locks and hydraulic pressure settings is critical.
This service manual captures the specific engineering nuances of the T36120SL series—ensuring that every task, from boom chain tensioning to stabilizer solenoid testing, is performed with precision. By utilizing the included diagnostic flowcharts, you can quickly identify the root cause of hydraulic or electrical issues, reducing downtime and ensuring workplace safety through proper calibration of the Aggravating Movement Arrester (AMA) systems.
The Manualsshop Advantage
- Instant Readiness: Download your technical manual immediately after purchase—no waiting for physical shipping.
- Searchable Tech: Quickly find specific fault codes or torque specs using the built-in PDF search function.
- Field Optimized: View high-resolution schematics on your tablet or smartphone directly at the machine.
- Bobcat Experts: Explore our complete Bobcat collection for all your loader, excavator, and telehandler needs.
Frequently Asked Questions
Q: Does this cover the stabilizer safety locking valves?
A: Yes. This manual includes full diagnostic and repair procedures for the stabilizer cylinders and the associated safety valves specific to the "SL" model.
Q: Are the Load Moment Indicator (LMI) schematics included?
A: Absolutely. The manual features detailed electrical and hydraulic schematics for the safety systems that prevent tipping during high-reach operations.
Q: Does this cover the 4-wheel steering modes?
A: Yes. It provides the full calibration and troubleshooting procedures for the Front-Wheel, All-Wheel, and Crab steering modes used on the T36120SL.
