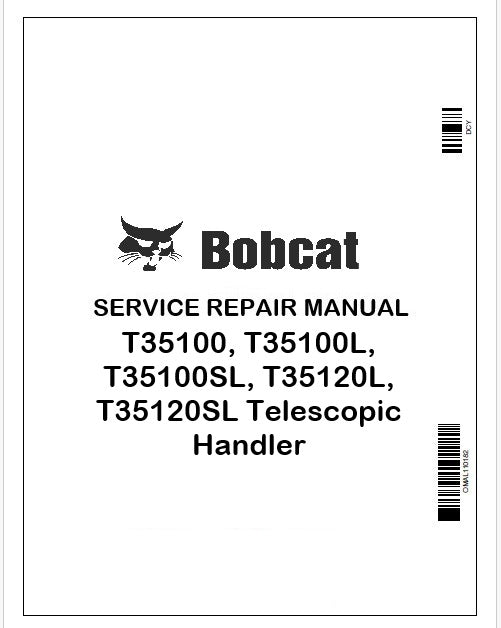

Bobcat T35100, T35100L, T35100SL, T35120L, T35120SL Telescopic Handler Repair Service Manual Instant PDF
Bobcat T35100, T35100L, T35100SL, T35120L, T35120SL Telescopic Handler Repair Service Manual Instant PDF
⭐⭐⭐⭐⭐ 50+ Reviews
Couldn't load pickup availability
Official Service & Repair Manual | Instant PDF Download
Maintain the peak operational efficiency and site safety of your high-reach equipment with the Bobcat T35100 & T35120 Series Telescopic Handler Service Manual. This professional-grade technical volume provides factory-authorized procedures for the comprehensive maintenance, troubleshooting, and repair of the T35100 and T35120 series, including L (Leveling) and SL (Stabilizer/Leveling) configurations. This manual covers an extensive range of serial numbers, including both numerical and A8-prefix production runs.
This digital workshop resource is an essential asset for service technicians and fleet managers responsible for the high-tensile telescopic boom assemblies and the sophisticated hydrostatic propulsion systems unique to these Bobcat handlers. By adhering to these factory-validated protocols, you ensure that every service task—from complex load-sensing hydraulic valve calibration to four-wheel steering alignment—meets original OEM specifications. This manual provides the critical torque values, hydraulic pressures, and diagnostic logic required to minimize downtime and maximize machine longevity.
Manual Specifications & Comprehensive Serial Coverage
| Machine Models | T35100, T35100L, T35100SL, T35120L, T35120SL |
| Numerical Serial Ranges | S/N 366611001, 366311001, 366211001, 362711001, 363711001, 362611001, 363811001 & Above |
| Alpha-Numeric Serial Ranges | S/N A8HD11001, A8GW11001, A8GT11001, A8GV11001, A8GJ11001 & Above |
| Document Type | Official Service & Repair Manual |
| Page Count | 325+ Pages |
| File Size | 58 MB |
| File Format | Searchable, Printable, & Bookmarked PDF |
Comprehensive Service Modules
Access detailed technical data across all major machine systems with logically organized chapters:
| Service Section | Technical Coverage |
|---|---|
| Hydraulic System | Load-Sensing Pump Repair, Main Control Block Testing, and Multi-Stage Cylinder Service |
| Hydrostatic System | Transmission Calibration, Drive Motor Overhaul, and Inching Control Adjustment |
| Telescopic Boom | Internal Chain Inspection, Wear Pad Shim Procedures, and Extension/Retraction Logic |
| Axles & Steering | Three-Mode Steering Calibration (Front, Coordinated, Crab), Brake Service, and Axle Seals |
| Electrical System | Full Wiring Schematics, Load Moment Indicator (LMI) Troubleshooting, and Sensor Testing |
| Engine & Systems | Engine Removal/Installation, Turbocharger Service, and Cooling Package Maintenance |
Precision Engineering: Bobcat High-Reach Solutions
The Bobcat T35100 and T35120 telescopic handlers are engineered for superior material placement in construction and industrial settings. Featuring a robust multi-stage boom and specialized frame leveling systems, these machines allow for precise load handling on uneven terrain. To maintain the machine's rated lifting capacity and structural integrity, following the factory-prescribed service intervals for boom chain tensioning and hydraulic pressure settings is vital.
This service manual details the nuances of both the numerical and A8-series engineering, ensuring that critical safety systems like the Aggravating Movement Arrester (AMA) and Load Moment Indicators are calibrated correctly. Using the included diagnostic flowcharts, technicians can efficiently isolate faults in the electro-hydraulic controls, preventing guesswork and ensuring site safety.
